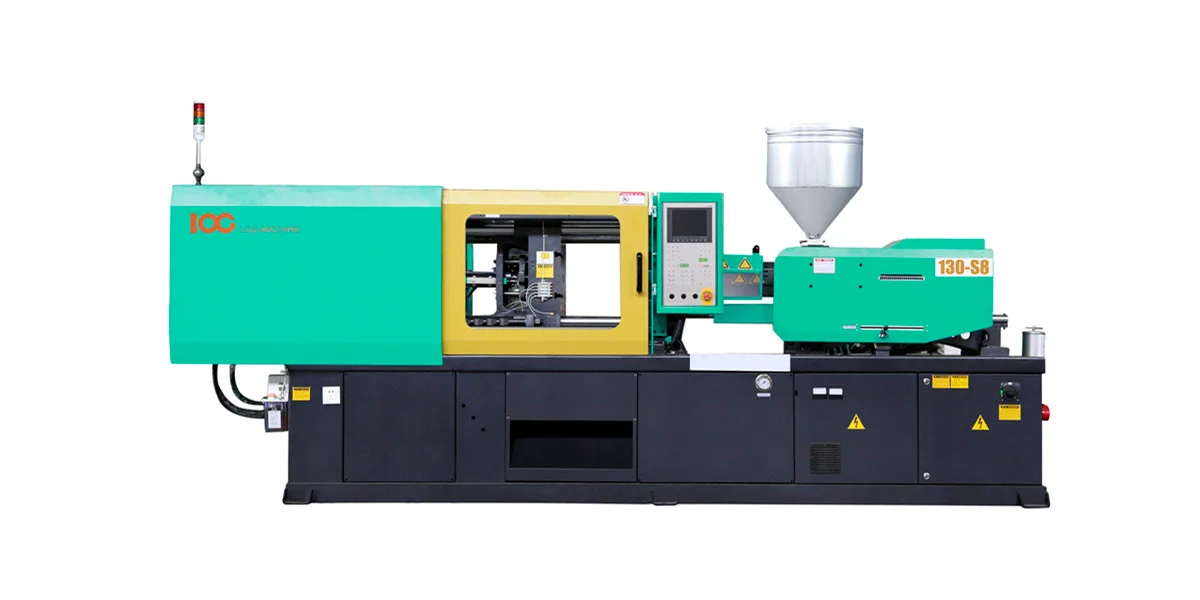

LOG-S8 130 Ton*

LOG-S8 130

LOG-S8 130 Ton*

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Lorem ipsum dolor sit amet, consectetur adipiscing elit Ut elit tellus.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Specifications of LOG-S8 130

Shot volume(PS)	Screw diameter	Clamping force	Opening stroke	Tie-Bar Distance	Mold thickness	Pump motor
239g	42mm	1300kn	380mm	410 x 410(mm)	150-430(mm)	18.2kw

Click here to open gallery

Clamping Unit

LOG Clamping Unit

1. Toggle adopting the conjoined structure, improving the hardness of toggle, ensuring the uniform of toggle manufacture-size, minimizing the gap between pipe and pin, improve the accuracy and application life of toggle.
2. First clamping platen using the box-type structure design, (thicken the thickness of platen, improving the hardness of platen, efficiently minimizing the deform caused by the force of tie bar.
3. Unique third-platen flange design, when the third- platen deforms by the pressure, by the support of flange and tie bar. a reverse torque will minimizing the deform of the third-platen.
4. Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting (the mold thickness in manual or automatic mode.
5. Steel bush in clamping unit adopts new structure, arrange rational holes of graphite to improve the effect of steel bush lubrication and the wear-resistance, reduces the usage of lubrication oil.

Injection Unit

LOG Injection Unit

1. Injection unit adopts double-cylinder design, more higher injection pressure, more simpler structure and lower malfunction rate.
2. Enlarged-cylinder, adopting two-cylinder design, effectively prevent the adhesive- material leaking phenomenon caused by the machine vibration or other reasons while the nozzle is under high-speed operation.
3. Adopting graphite bush, improving the wear- resistance, reducing the frequency of using lubrication oil, effectively improve the cleanness of the injection part.
4. Injection cylinder adopts low-frictional seals, improving the response rate and improve the stability under the complicated processes of injection.
5. Bridge-style design, for different L/D ratio plasticizing parts.

Click here to open gallery

Servo Drive Features

LOG Servo Drive Features

High-speed communication via bus to realize the actual pressure, the flow of real-time monitoring of multiple signals, driver output current, load rate.
Medium-sized syringe of dual-pump or multiple-pump confluence way, using a special servo control technology to achieve the perfect synchronization control of servo and oil pump, to achieve the perfect confluence of multiple oil pumps.

Effect Test Cases

LOG Energy-savings Effect

Test Case

Test product: snack box
Material: PP
Weight: 21g
Wall thickness: 0.43mm
Cavities: 2

Test condition

Machines: 250Ton, S8 Series

Hydraulic pump:

Pump type: one fixed displacement, one variable displacement, one servo displacement
Displacement: Same on each machine
Oil temperature: 40OC

Machine settings: Each machine had the same settings
Processing time: Several hours

The test results show an energy savings of 45.5% when using the S8 servo system compared to a similar-sized fixed displacement system IMM with up to 80% energy savings.

S8 Plastic Machine Sampling Analysis

Plastic Machine Sampling Analysis	250T Fixed Displacement MM	250T Variable Displacement IMM	250T Servo System IMM
Test Time	2	2	2
Oil Temperature	55	45	40
Close Mold	1.8	1.8	1.6
Open Mold	1.4	1.4	1.4
Injection	1.5	1.2	1
Hold Pressure	0.5	0.4	0.2
Charging	2.2	2.2	1.8
Production Cycle	7.4	7	6
Total Shot	973	1028	1200
Power Consumption per hour (kW/h)	12.3	10.6	8.8
Annual Power Consumption (kW)	66,420	57,420	47,520

Note: The data above is based on running the machine for 18 hours per day, 25 days per month, and 300 days per year.

Note: *The tonnage shown in the model number is in metric tons, equivalent to approximately 1.1 US tons. Please note when selecting a machine for your application.

LOG-S8 130 Ton*

LOG-S8 130 Ton*

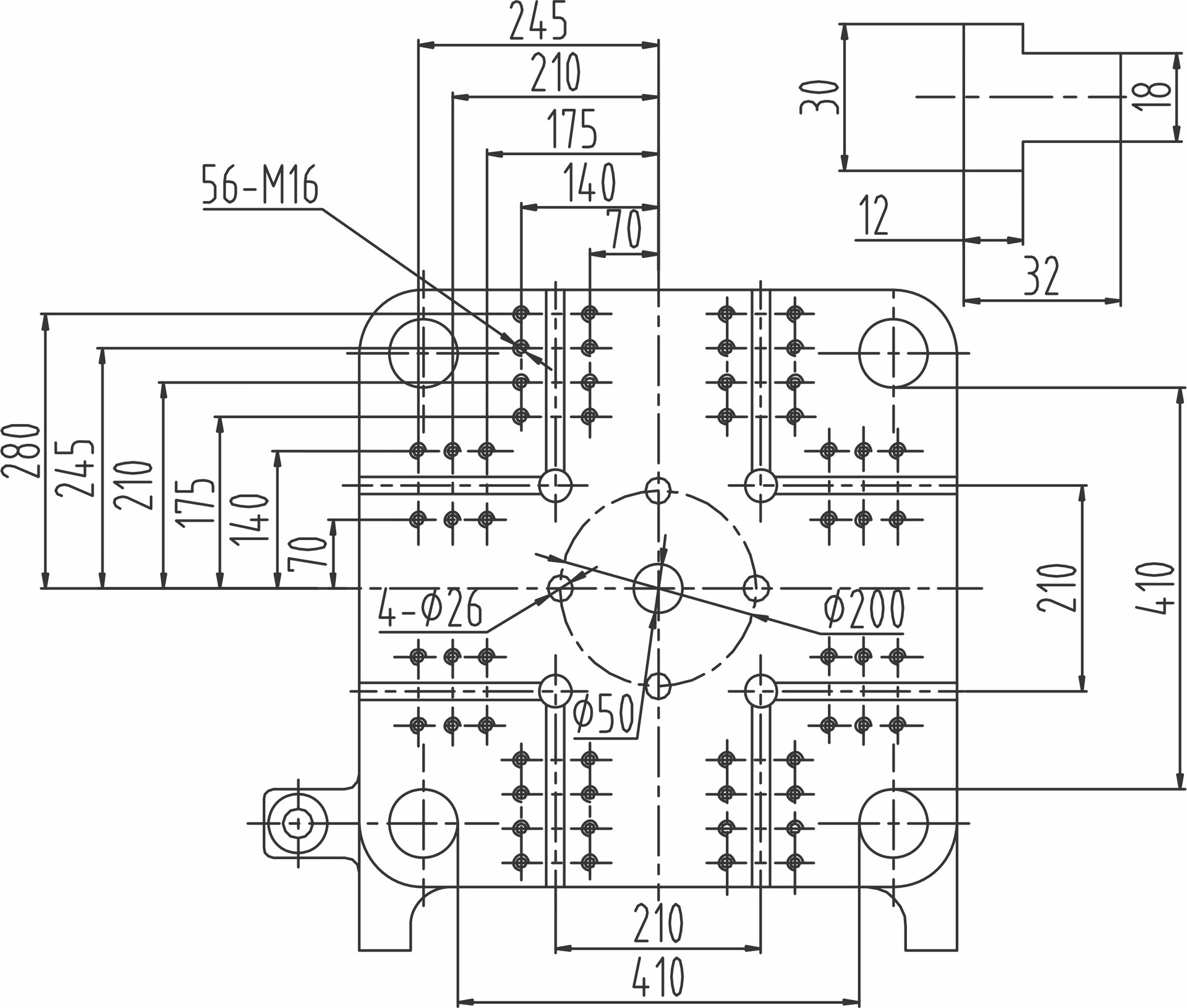

Specifications of LOG-S8 130

LOG Clamping Unit

LOG Injection Unit

LOG Servo Drive Features

LOG Energy-savings Effect

S8 Plastic Machine Sampling Analysis
